多智能体监督者

监督者 是一种多智能体架构，其中**专门的**智能体由一个中央**监督者智能体**进行协调。监督者智能体控制所有通信流和任务委派，根据当前上下文和任务需求决定调用哪个智能体。

在本教程中，您将构建一个包含两个智能体的监督者系统——一个研究专家和一个数学专家。教程结束时，您将：

  1. 构建专门的研究和数学智能体
  2. 使用预构建的 langgraph-supervisor 构建一个用于协调它们的监督者
  3. 从头开始构建一个监督者
  4. 实现高级任务委派

架构图

设置

首先，让我们安装所需的包并设置 API 密钥

%%capture --no-stderr
%pip install -U langgraph langgraph-supervisor langchain-tavily "langchain[openai]"

import getpass
import os


def _set_if_undefined(var: str):
    if not os.environ.get(var):
        os.environ[var] = getpass.getpass(f"Please provide your {var}")


_set_if_undefined("OPENAI_API_KEY")
_set_if_undefined("TAVILY_API_KEY")

Tip

注册 LangSmith 以快速发现问题并提高 LangGraph 项目的性能。LangSmith 让您可以使用追踪数据来调试、测试和监控使用 LangGraph 构建的 LLM 应用程序。

1. 创建工作智能体

首先，让我们创建专门的工人智能体——研究智能体和数学智能体：

  • 研究智能体将可以使用 Tavily API 的网络搜索工具
  • 数学智能体将可以使用简单的数学工具（add、multiply、divide）

研究智能体

对于网络搜索，我们将使用 langchain-tavily 中的 TavilySearch 工具：

API Reference: TavilySearch

from langchain_tavily import TavilySearch

web_search = TavilySearch(max_results=3)
web_search_results = web_search.invoke("who is the mayor of NYC?")

print(web_search_results["results"][0]["content"])

输出:

Find events, attractions, deals, and more at nyctourism.com Skip Main Navigation Menu The Official Website of the City of New York Text Size Powered by Translate SearchSearch Primary Navigation The official website of NYC Home NYC Resources NYC311 Office of the Mayor Events Connect Jobs Search Office of the Mayor | Mayor's Bio | City of New York Secondary Navigation MayorBiographyNewsOfficials Eric L. Adams 110th Mayor of New York City Mayor Eric Adams has served the people of New York City as an NYPD officer, State Senator, Brooklyn Borough President, and now as the 110th Mayor of the City of New York. Mayor Eric Adams has served the people of New York City as an NYPD officer, State Senator, Brooklyn Borough President, and now as the 110th Mayor of the City of New York. He gave voice to a diverse coalition of working families in all five boroughs and is leading the fight to bring back New York City's economy, reduce inequality, improve public safety, and build a stronger, healthier city that delivers for all New Yorkers. As the representative of one of the nation's largest counties, Eric fought tirelessly to grow the local economy, invest in schools, reduce inequality, improve public safety, and advocate for smart policies and better government that delivers for all New Yorkers.

要创建单独的工作智能体，我们将使用 LangGraph 预构建的 智能体。

API Reference: create_react_agent

from langgraph.prebuilt import create_react_agent

research_agent = create_react_agent(
    model="openai:gpt-4.1",
    tools=[web_search],
    prompt=(
        "You are a research agent.\n\n"
        "INSTRUCTIONS:\n"
        "- Assist ONLY with research-related tasks, DO NOT do any math\n"
        "- After you're done with your tasks, respond to the supervisor directly\n"
        "- Respond ONLY with the results of your work, do NOT include ANY other text."
    ),
    name="research_agent",
)

让我们 运行智能体 来验证其行为是否符合预期。

我们将使用 pretty_print_messages 辅助函数来美观地呈现流式传输的智能体输出

from langchain_core.messages import convert_to_messages


def pretty_print_message(message, indent=False):
    pretty_message = message.pretty_repr(html=True)
    if not indent:
        print(pretty_message)
        return

    indented = "\n".join("\t" + c for c in pretty_message.split("\n"))
    print(indented)


def pretty_print_messages(update, last_message=False):
    is_subgraph = False
    if isinstance(update, tuple):
        ns, update = update
        # skip parent graph updates in the printouts
        if len(ns) == 0:
            return

        graph_id = ns[-1].split(":")[0]
        print(f"Update from subgraph {graph_id}:")
        print("\n")
        is_subgraph = True

    for node_name, node_update in update.items():
        update_label = f"Update from node {node_name}:"
        if is_subgraph:
            update_label = "\t" + update_label

        print(update_label)
        print("\n")

        messages = convert_to_messages(node_update["messages"])
        if last_message:
            messages = messages[-1:]

        for m in messages:
            pretty_print_message(m, indent=is_subgraph)
        print("\n")

for chunk in research_agent.stream(
    {"messages": [{"role": "user", "content": "who is the mayor of NYC?"}]}
):
    pretty_print_messages(chunk)

输出:

Update from node agent:


================================== Ai 消息 ==================================
Name: research_agent
工具调用:
  tavily_search (call_U748rQhQXT36sjhbkYLSXQtJ)
 调用 ID: call_U748rQhQXT36sjhbkYLSXQtJ
  参数:
    query: current mayor of New York City
    search_depth: basic


Update from node tools:


================================= 工具消息 ==================================
Name: tavily_search

{"query": "current mayor of New York City", "follow_up_questions": null, "answer": null, "images": [], "results": [{"title": "List of mayors of New York City - Wikipedia", "url": "https://en.wikipedia.org/wiki/List_of_mayors_of_New_York_City", "content": "The mayor of New York City is the chief executive of the Government of New York City, as stipulated by New York City's charter.The current officeholder, the 110th in the sequence of regular mayors, is Eric Adams, a member of the Democratic Party.. During the Dutch colonial period from 1624 to 1664, New Amsterdam was governed by the Director of Netherland.", "score": 0.9039154, "raw_content": null}, {"title": "Office of the Mayor | Mayor's Bio | City of New York - NYC.gov", "url": "https://www.nyc.gov/office-of-the-mayor/bio.page", "content": "Mayor Eric Adams has served the people of New York City as an NYPD officer, State Senator, Brooklyn Borough President, and now as the 110th Mayor of the City of New York. He gave voice to a diverse coalition of working families in all five boroughs and is leading the fight to bring back New York City's economy, reduce inequality, improve", "score": 0.8405867, "raw_content": null}, {"title": "Eric Adams - Wikipedia", "url": "https://en.wikipedia.org/wiki/Eric_Adams", "content": "Eric Leroy Adams (born September 1, 1960) is an American politician and former police officer who has served as the 110th mayor of New York City since 2022. Adams was an officer in the New York City Transit Police and then the New York City Police Department (```

数学智能体

对于数学智能体工具，我们将使用 普通 Python 函数：

def add(a: float, b: float):
    """Add two numbers."""
    return a + b


def multiply(a: float, b: float):
    """Multiply two numbers."""
    return a * b


def divide(a: float, b: float):
    """Divide two numbers."""
    return a / b


math_agent = create_react_agent(
    model="openai:gpt-4.1",
    tools=[add, multiply, divide],
    prompt=(
        "You are a math agent.\n\n"
        "INSTRUCTIONS:\n"
        "- Assist ONLY with math-related tasks\n"
        "- After you're done with your tasks, respond to the supervisor directly\n"
        "- Respond ONLY with the results of your work, do NOT include ANY other text."
    ),
    name="math_agent",
)

让我们运行数学智能体：

for chunk in math_agent.stream(
    {"messages": [{"role": "user", "content": "what's (3 + 5) x 7"}]}
):
    pretty_print_messages(chunk)

输出:

Update from node agent:


================================== Ai 消息 ==================================
Name: math_agent
工具调用:
  add (call_p6OVLDHB4LyCNCxPOZzWR15v)
 调用 ID: call_p6OVLDHB4LyCNCxPOZzWR15v
  参数:
    a: 3
    b: 5


Update from node tools:


================================= 工具消息 ==================================
Name: add

8.0


Update from node agent:


================================== Ai 消息 ==================================
Name: math_agent
工具调用:
  multiply (call_EoaWHMLFZAX4AkajQCtZvbli)
 调用 ID: call_EoaWHMLFZAX4AkajQCtZvbli
  参数:
    a: 8
    b: 7


Update from node tools:


================================= 工具消息 ==================================
Name: multiply

56.0


Update from node agent:


================================== Ai 消息 ==================================
Name: math_agent

56

2. 使用 langgraph-supervisor 创建监督者

为了实现我们的多智能体系统，我们将使用预构建的 langgraph-supervisor 库中的 create_supervisor：

API Reference: create_supervisor | init_chat_model

from langgraph_supervisor import create_supervisor
from langchain.chat_models import init_chat_model

supervisor = create_supervisor(
    model=init_chat_model("openai:gpt-4.1"),
    agents=[research_agent, math_agent],
    prompt=(
        "You are a supervisor managing two agents:\n"
        "- a research agent. Assign research-related tasks to this agent\n"
        "- a math agent. Assign math-related tasks to this agent\n"
        "Assign work to one agent at a time, do not call agents in parallel.\n"
        "Do not do any work yourself."
    ),
    add_handoff_back_messages=True,
    output_mode="full_history",
).compile()

from IPython.display import display, Image

display(Image(supervisor.get_graph().draw_mermaid_png()))

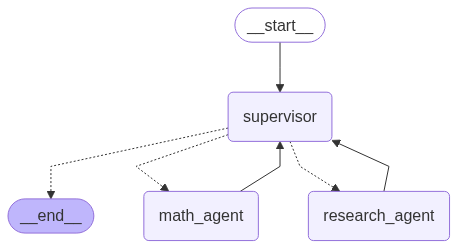

图

注意： 当您运行此代码时，它将生成并显示监督者图的可视化表示，展示监督者和工作智能体之间的流程。

现在让我们运行一个需要两个智能体的查询：

  • 研究智能体将查找必要的 GDP 信息
  • 数学智能体将执行除法以找到纽约州 GDP 的百分比，如所请求的那样
for chunk in supervisor.stream(
    {
        "messages": [
            {
                "role": "user",
                "content": "find US and New York state GDP in 2024. what % of US GDP was New York state?",
            }
        ]
    },
):
    pretty_print_messages(chunk, last_message=True)

final_message_history = chunk["supervisor"]["messages"]

输出:

Update from node supervisor:


================================= 工具消息 ==================================
Name: transfer_to_research_agent

Successfully transferred to research_agent


Update from node research_agent:


================================= 工具消息 ==================================
Name: transfer_back_to_supervisor

Successfully transferred back to supervisor


Update from node supervisor:


================================= 工具消息 ==================================
Name: transfer_to_math_agent

Successfully transferred to math_agent


Update from node math_agent:


================================= 工具消息 ==================================
Name: transfer_back_to_supervisor

Successfully transferred back to supervisor


Update from node supervisor:


================================== Ai 消息 ==================================
Name: supervisor

In 2024, the US GDP was $29.18 trillion and New York State's GDP was $2.297 trillion. New York State accounted for approximately 7.87% of the total US GDP in 2024.

3. 从头开始创建监督者

现在让我们从头开始实现相同的多智能体系统。我们需要：

  1. 设置监督者与单个智能体的通信方式
  2. 创建监督者智能体
  3. 将监督者和工作智能体组合成一个 单一的多智能体图.

设置智能体通信

我们需要定义一种监督者智能体与工作智能体通信的方式。在多智能体架构中，实现此目的的一种常见方法是使用**移交（handoffs）**，即一个智能体将控制权*移交*给另一个智能体。移交允许您指定：

  • 目的地（destination）：要转移到的目标智能体
  • 有效载荷（payload）：传递给该智能体的信息

我们将通过**移交工具**实现移交，并将这些工具提供给监督者智能体：当监督者调用这些工具时，它将把控制权移交给一个工作智能体，并将完整的消息历史记录传递给该智能体。

API Reference: tool | InjectedToolCallId | InjectedState | StateGraph | START | Command

from typing import Annotated
from langchain_core.tools import tool, InjectedToolCallId
from langgraph.prebuilt import InjectedState
from langgraph.graph import StateGraph, START, MessagesState
from langgraph.types import Command


def create_handoff_tool(*, agent_name: str, description: str | None = None):
    name = f"transfer_to_{agent_name}"
    description = description or f"Ask {agent_name} for help."

    @tool(name, description=description)
    def handoff_tool(
        state: Annotated[MessagesState, InjectedState],
        tool_call_id: Annotated[str, InjectedToolCallId],
    ) -> Command:
        tool_message = {
            "role": "tool",
            "content": f"Successfully transferred to {agent_name}",
            "name": name,
            "tool_call_id": tool_call_id,
        }
        return Command(
            goto=agent_name,  # (1)!
            update={**state, "messages": state["messages"] + [tool_message]},  # (2)!
            graph=Command.PARENT,  # (3)!
        )

    return handoff_tool


# 移交工具
assign_to_research_agent = create_handoff_tool(
    agent_name="research_agent",
    description="Assign task to a researcher agent.",
)

assign_to_math_agent = create_handoff_tool(
    agent_name="math_agent",
    description="Assign task to a math agent.",
)
  1. 要移交到的智能体或节点的名称。
  2. 获取智能体的消息并将其作为移交的一部分添加到父级状态。下一个智能体将看到父级状态。
  3. 向 LangGraph 指示我们需要导航到**父级**多智能体图中的智能体节点。

创建监督者智能体

然后，让我们使用刚刚定义的移交工具创建监督者智能体。我们将使用预构建的 create_react_agent：

supervisor_agent = create_react_agent(
    model="openai:gpt-4.1",
    tools=[assign_to_research_agent, assign_to_math_agent],
    prompt=(
        "You are a supervisor managing two agents:\n"
        "- a research agent. Assign research-related tasks to this agent\n"
        "- a math agent. Assign math-related tasks to this agent\n"
        "Assign work to one agent at a time, do not call agents in parallel.\n"
        "Do not do any work yourself."
    ),
    name="supervisor",
)

创建多智能体图

将所有这些放在一起，让我们为整个多智能体系统创建一个图。我们将把监督者和单个智能体添加为子图 节点。

API Reference: END

from langgraph.graph import END

# 定义多智能体监督者图
supervisor = (
    StateGraph(MessagesState)
    # 注意：`destinations` 仅用于可视化，不影响运行时行为
    .add_node(supervisor_agent, destinations=("research_agent", "math_agent", END))
    .add_node(research_agent)
    .add_node(math_agent)
    .add_edge(START, "supervisor")
    # 总是返回到监督者
    .add_edge("research_agent", "supervisor")
    .add_edge("math_agent", "supervisor")
    .compile()
)

请注意，我们已经添加了从工作智能体返回到监督者的显式 边——这意味着它们保证将控制权返回给监督者。如果您希望智能体直接响应用户（即，将系统变成路由器），可以移除这些边。

from IPython.display import display, Image

display(Image(supervisor.get_graph().draw_mermaid_png()))

图

注意： 当您运行此代码时，它将生成并显示多智能体监督者图的可视化表示，展示监督者和工作智能体之间的流程。

多智能体图创建完成后，现在让我们运行它！

for chunk in supervisor.stream(
    {
        "messages": [
            {
                "role": "user",
                "content": "find US and New York state GDP in 2024. what % of US GDP was New York state?",
            }
        ]
    },
):
    pretty_print_messages(chunk, last_message=True)

final_message_history = chunk["supervisor"]["messages"]

输出:

Update from node supervisor:


================================= 工具消息 ==================================
Name: transfer_to_research_agent

Successfully transferred to research_agent


Update from node research_agent:


================================== Ai 消息 ==================================
Name: research_agent

- US GDP in 2024 is projected to be about $28.18 trillion USD (Statista; CBO projection).
- New York State's nominal GDP for 2024 is estimated at approximately $2.16 trillion USD (various economic reports).
- New York State's share of US GDP in 2024 is roughly 7.7%.

Sources:
- https://www.statista.com/statistics/216985/forecast-of-us-gross-domestic-product/
- https://nyassembly.gov/Reports/WAM/2025economic_revenue/2025_report.pdf?v=1740533306


Update from node supervisor:


================================= 工具消息 ==================================
Name: transfer_to_math_agent

Successfully transferred to math_agent


Update from node math_agent:


================================== Ai 消息 ==================================
Name: math_agent

US GDP in 2024: $28.18 trillion
New York State GDP in 2024: $2.16 trillion
Percentage of US GDP from New York State: 7.67%


Update from node supervisor:


================================== Ai 消息 ==================================
Name: supervisor

Here are your results:

- 2024 US GDP (projected): $28.18 trillion USD
- 2024 New York State GDP (estimated): $2.16 trillion USD
- New York State's share of US GDP: approximately 7.7%

If you need the calculation steps or sources, let me know!

让我们检查完整的最终消息历史记录：

for message in final_message_history:
    message.pretty_print()

输出:

================================ 人类消息 ==================================

find US and New York state GDP in 2024. what % of US GDP was New York state?
================================== Ai 消息 ===================================
Name: supervisor
工具调用:
  transfer_to_research_agent (call_KlGgvF5ahlAbjX8d2kHFjsC3)
 调用 ID: call_KlGgvF5ahlAbjX8d2kHFjsC3
  参数:
================================= 工具消息 ==================================
Name: transfer_to_research_agent

Successfully transferred to research_agent
================================== Ai 消息 ===================================
Name: research_agent
工具调用:
  tavily_search (call_ZOaTVUA6DKrOjWQldLhtrsO2)
 调用 ID: call_ZOaTVUA6DKrOjWQldLhtrsO2
  参数:
    query: US GDP 2024 estimate or actual
    search_depth: advanced
  tavily_search (call_QsRAasxW9K03lTlqjuhNLFbZ)
 调用 ID: call_QsRAasxW9K03lTlqjuhNLFbZ
  参数:
    query: New York state GDP 2024 estimate or actual
    search_depth: advanced
================================= 工具消息 ==================================
Name: tavily_search

{"query": "US GDP 2024 estimate or actual", "follow_up_questions": null, "answer": null, "images": [], "results": [{"url": "https://www.advisorperspectives.com/dshort/updates/2025/05/29/gdp-gross-domestic-product-q1-2025-second-estimate", "title": "Q1 GDP Second Estimate: Real GDP at -0.2%, Higher Than Expected", "content": "> Real gross domestic product (GDP) decreased at an annual rate of 0.2 percent in the first quarter of 2025 (January, February, and March), according to the second estimate released by the U.S. Bureau of Economic Analysis. In the fourth quarter of 2024, real GDP increased 2.4 percent. The decrease in real GDP in the first quarter primarily reflected an increase in imports, which are a subtraction in the calculation of GDP, and a decrease in government spending. These movements were partly [...] by [Harry Mamaysky](https://www.advisor```

Important

您可以看到监督者系统将**所有**单个智能体消息（即它们的内部工具调用循环）附加到完整的消息历史记录中。这意味着在监督者的每个回合中，监督者智能体都会看到这个完整的历史记录。如果您想更多地控制：

  • 输入如何传递给智能体：您可以使用 LangGraph Send() 原语在移交期间直接将数据发送给工作智能体。请参阅下面的 任务委派 示例

  • 智能体输出的添加方式：您可以通过将智能体包装在一个单独的节点函数中来控制将多少智能体的内部消息历史记录添加到整个监督者消息历史记录中：

    def call_research_agent(state):
    # return agent's final response,
    # excluding inner monologue
    response = research_agent.invoke(state)
    return {"messages": response["messages"][-1]}

4. 创建委派任务

到目前为止，单个智能体依赖于**解释完整的消息历史记录**来确定它们的任务。另一种方法是要求监督者**明确制定一个任务**。我们可以通过向 handoff_tool 函数添加一个 task_description 参数来实现这一点。

API Reference: Send

from langgraph.types import Send


def create_task_description_handoff_tool(
    *, agent_name: str, description: str | None = None
):
    name = f"transfer_to_{agent_name}"
    description = description or f"Ask {agent_name} for help."

    @tool(name, description=description)
    def handoff_tool(
        # this is populated by the supervisor LLM
        task_description: Annotated[
            str,
            "Description of what the next agent should do, including all of the relevant context.",
        ],
        # these parameters are ignored by the LLM
        state: Annotated[MessagesState, InjectedState],
    ) -> Command:
        task_description_message = {"role": "user", "content": task_description}
        agent_input = {**state, "messages": [task_description_message]}
        return Command(
            goto=[Send(agent_name, agent_input)],
            graph=Command.PARENT,
        )

    return handoff_tool


assign_to_research_agent_with_description = create_task_description_handoff_tool(
    agent_name="research_agent",
    description="Assign task to a researcher agent.",
)

assign_to_math_agent_with_description = create_task_description_handoff_tool(
    agent_name="math_agent",
    description="Assign task to a math agent.",
)

supervisor_agent_with_description = create_react_agent(
    model="openai:gpt-4.1",
    tools=[
        assign_to_research_agent_with_description,
        assign_to_math_agent_with_description,
    ],
    prompt=(
        "You are a supervisor managing two agents:\n"
        "- a research agent. Assign research-related tasks to this assistant\n"
        "- a math agent. Assign math-related tasks to this assistant\n"
        "Assign work to one agent at a time, do not call agents in parallel.\n"
        "Do not do any work yourself."
    ),
    name="supervisor",
)

supervisor_with_description = (
    StateGraph(MessagesState)
    .add_node(
        supervisor_agent_with_description, destinations=("research_agent", "math_agent")
    )
    .add_node(research_agent)
    .add_node(math_agent)
    .add_edge(START, "supervisor")
    .add_edge("research_agent", "supervisor")
    .add_edge("math_agent", "supervisor")
    .compile()
)

Note

我们在 handoff_tool 中使用了 Send() 原语。这意味着每个工作智能体接收到的不是完整的 supervisor 图状态作为输入，而只看到 Send 有效载荷的内容。在这个例子中，我们将任务描述作为一条“人类”消息发送。

现在让我们用相同的输入查询来运行它：

for chunk in supervisor_with_description.stream(
    {
        "messages": [
            {
                "role": "user",
                "content": "find US and New York state GDP in 2024. what % of US GDP was New York state?",
            }
        ]
    },
    subgraphs=True,
):
    pretty_print_messages(chunk, last_message=True)

输出:

Update from subgraph supervisor:


    Update from node agent:


    ================================== Ai 消息 ==================================
    Name: supervisor
    工具调用:
      transfer_to_research_agent (call_tk8q8py8qK6MQz6Kj6mijKua)
     调用 ID: call_tk8q8py8qK6MQz6Kj6mijKua
      参数:
        task_description: Find the 2024 GDP (Gross Domestic Product) for both the United States and New York state, using the most up-to-date and reputable sources available. Provide both GDP values and cite the data sources.


Update from subgraph research_agent:


    Update from node agent:


    ================================== Ai 消息 ==================================
    Name: research_agent
    工具调用:
      tavily_search (call_KqvhSvOIhAvXNsT6BOwbPlRB)
     调用 ID: call_KqvhSvOIhAvXNsT6BOwbPlRB
      参数:
        query: 2024 United States GDP value from a reputable source
        search_depth: advanced
      tavily_search (call_kbbAWBc9KwCWKHmM5v04H88t)
     调用 ID: call_kbbAWBc9KwCWKHmM5v04H88t
      参数:
        query: 2024 New York state GDP value from a reputable source
        search_depth: advanced


Update from subgraph research_agent:


    Update from node tools:


    ================================= 工具消息 ==================================
    Name: tavily_search

    {"query": "2024 United States GDP value from a reputable source", "follow_up_questions": null, "answer": null, "images": [], "results": [{"url": "https://www.focus-economics.com/countries/united-states/", "title": "United States Economy Overview - Focus Economics", "content": "The United States' Macroeconomic Analysis:\n------------------------------------------\n\n**Nominal GDP of USD 29,185 billion in 2024.**\n\n**Nominal GDP of USD 29,179 billion in 2024.**\n\n**GDP per capita of USD 86,635 compared to the global average of USD 10,589.**\n\n**GDP per capita of USD 86,652 compared to the global average of USD 10,589.**\n\n**Average real GDP growth of 2.5% over the last decade.**\n\n**Average real GDP growth of ```
